810 Level and Leak Alarm Monitor

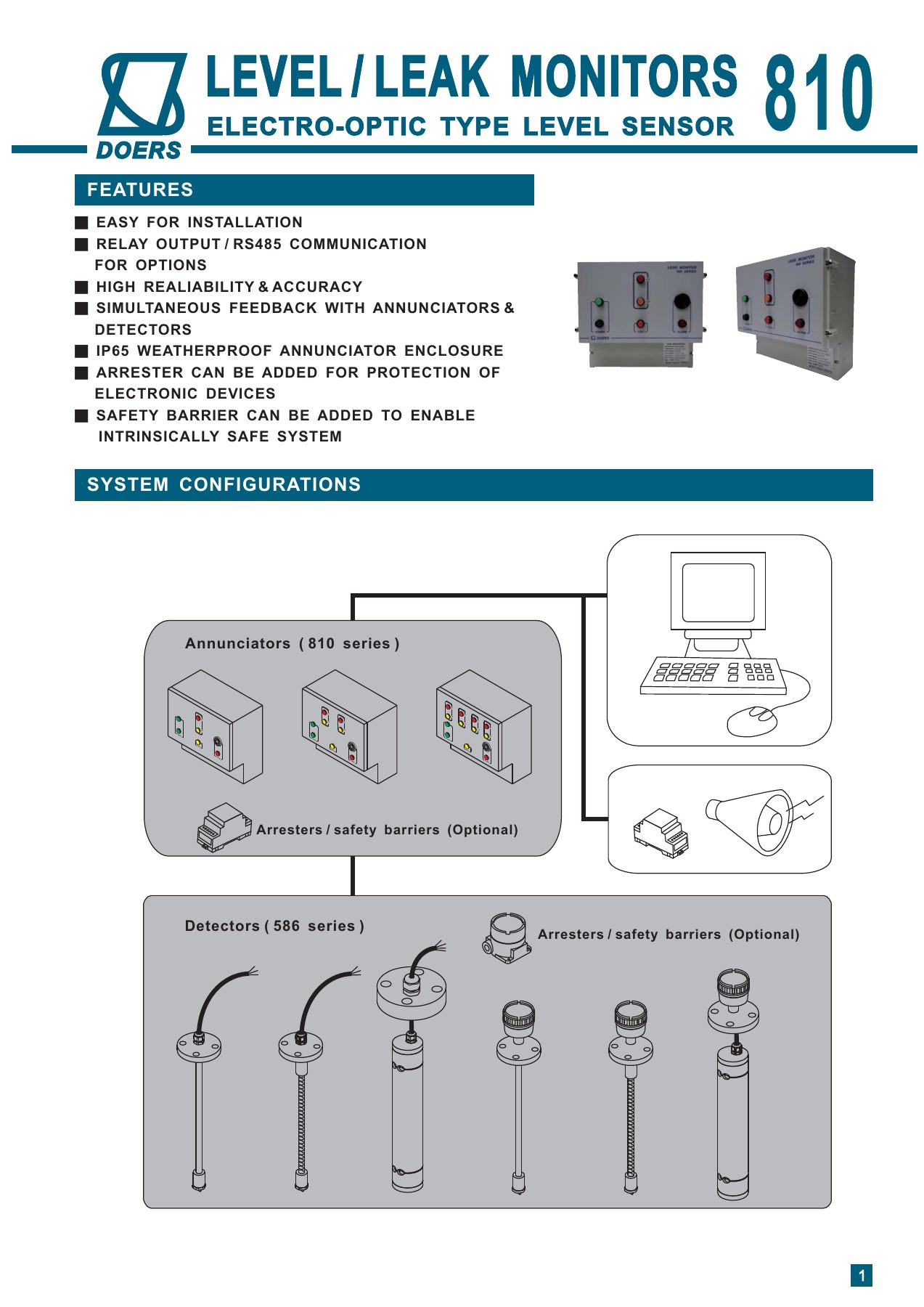

The 810 series receives signals from 586 electro-optic sensors and provides audible and visual level or leak alarms. The 810A monitors level and the 810B monitors leaks. Applications include dry or brine-filled double-wall tanks and sump pits. Relay outputs and RS-485 communication are optional.

Open PDF ↗Technical support ↗

Model: 810 Series
Category: Level
Revision: 01C-810-1631-03A

SELECTION GUIDE

Selection guidance and FAQs

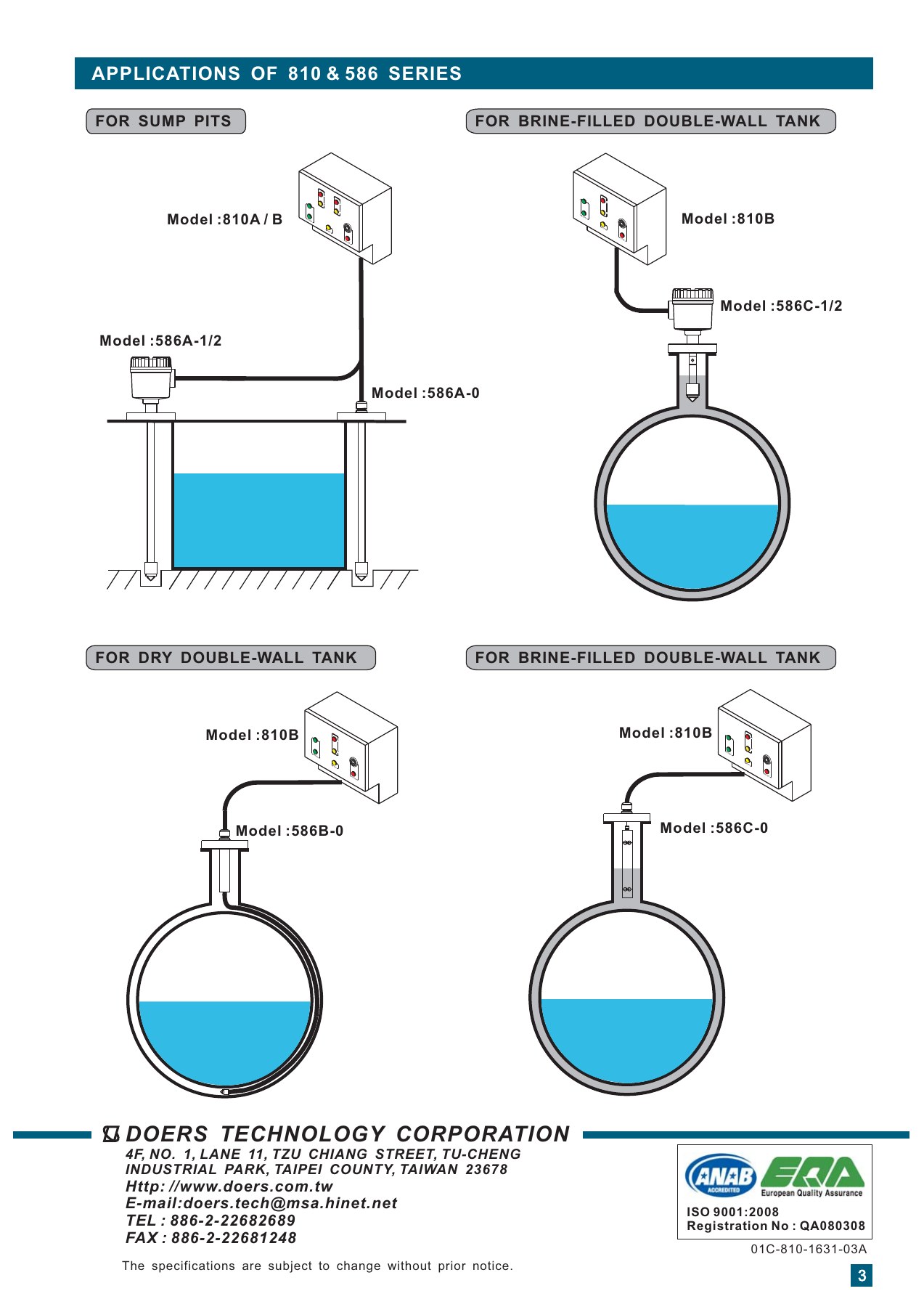

How is it used with double-wall tanks and sumps?

The 810 is the alarm monitor and requires suitable 586 electro-optic sensors. Dry interstitial spaces, brine-filled interstices and sumps use different sensing arrangements. Provide tank construction, fluid and monitoring-point requirements.

Do you need relay outputs or communication?

Audible and visual alarms are the basic functions. SPDT relays and RS-485 are optional. Specify the receiving system, relay count and protocol; RS-485 alone does not establish support for a particular protocol.

Technical specifications

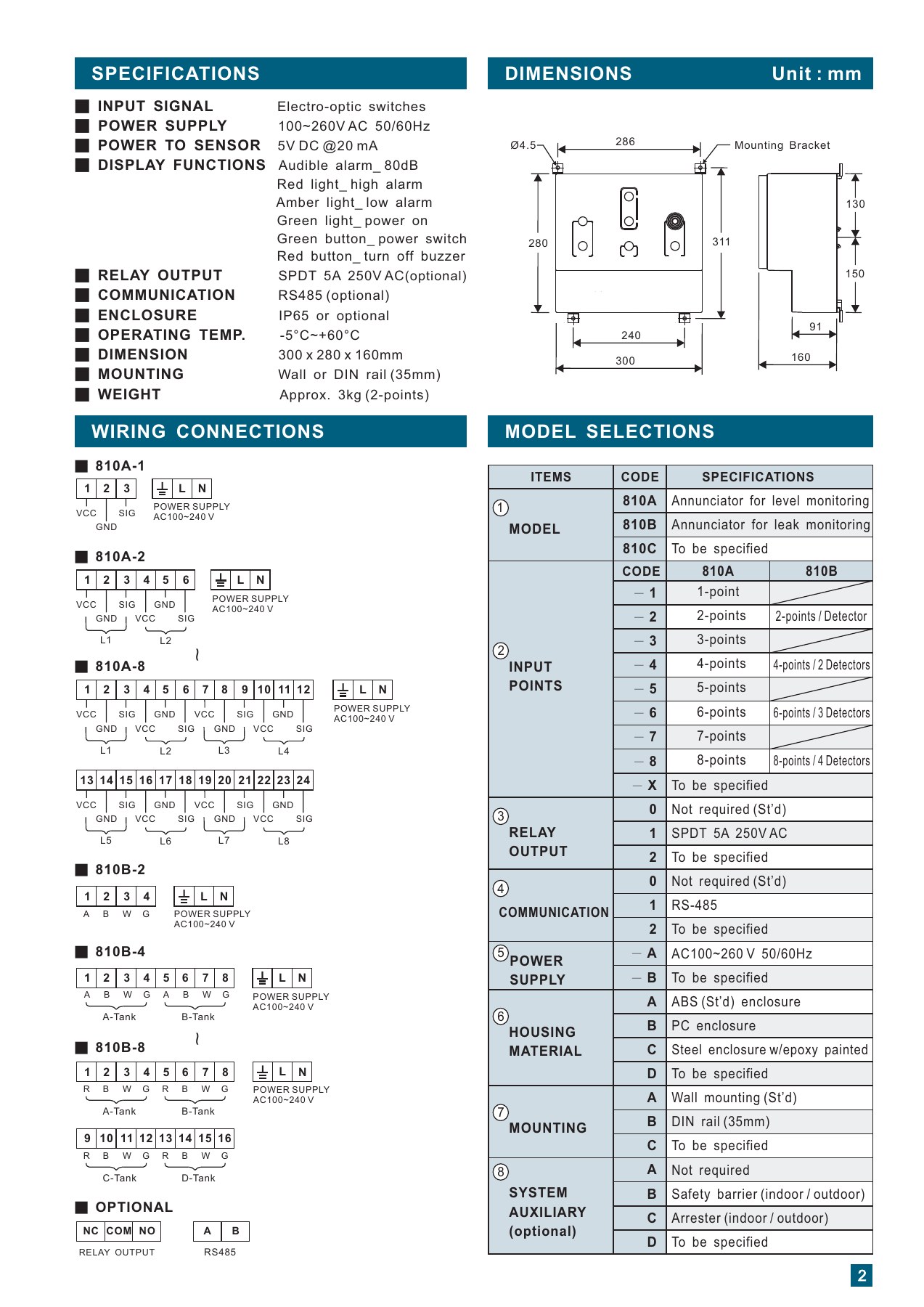

Parameter	Specification	Unit
Models	810A: level; 810B: leak; 810C: specified configuration
Input	586 series electro-optic sensors, selected for the application
Input points	810A: 1–8 points; 810B: 2/4/6/8 points for 1/2/3/4 detectors

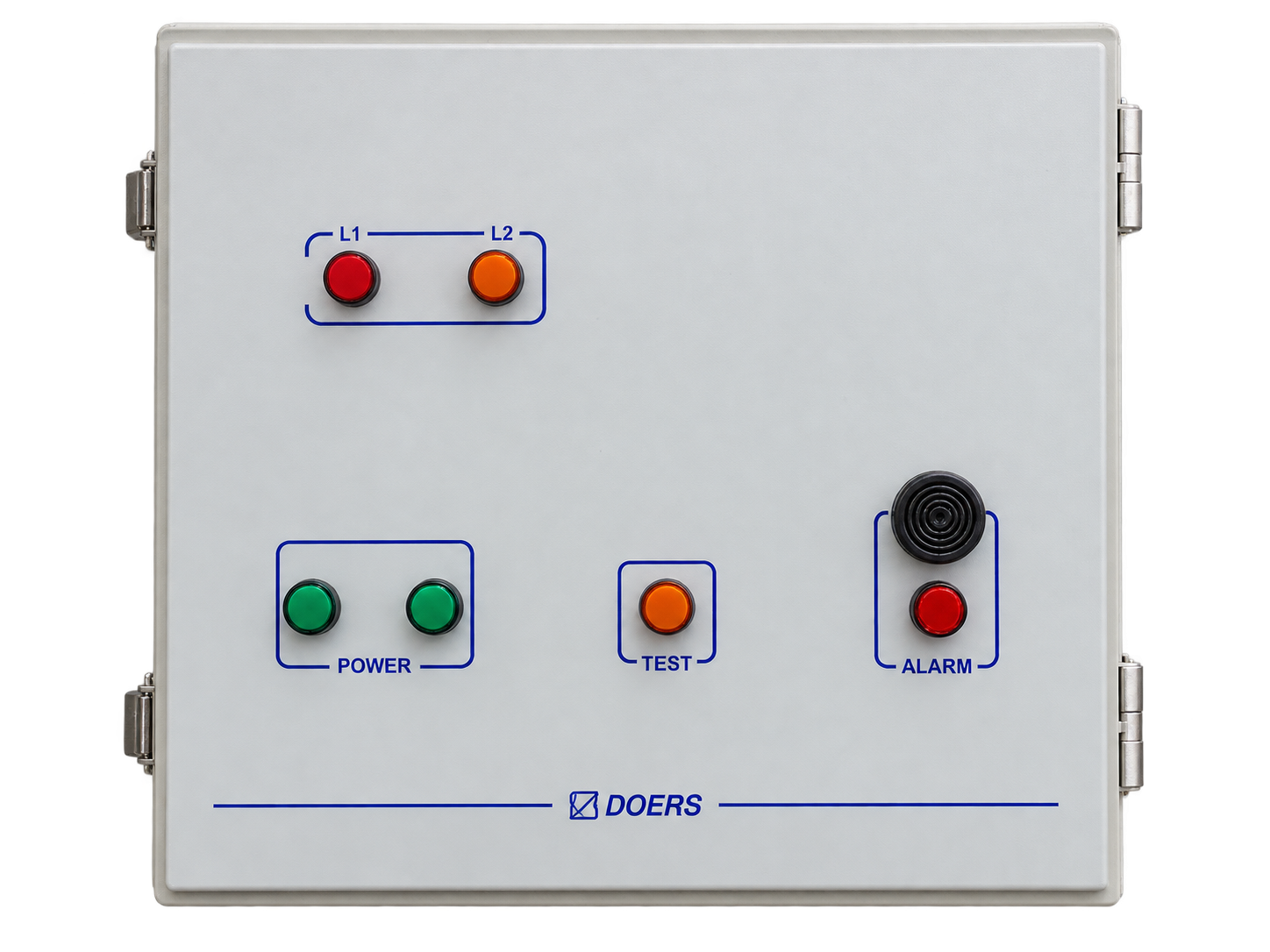

Alarms	80 dB buzzer; red high alarm, amber low alarm and green power indication; buzzer mute button
Sensor supply	5 V DC / 20 mA
Optional relay	SPDT, 5 A at 250 V AC; not included as standard
Optional communication	RS-485; not included as standard
Enclosure	Standard ABS; optional PC or epoxy-painted steel; IP65 or specified configuration
Ambient temperature	-5 to +60	°C
Dimensions	300 × 280 × 160	mm
Mounting	Wall or 35 mm DIN rail

Application and selection notes

Identify whether the application is a dry interstitial space, a brine-filled double-wall tank or a sump, then select the 586 sensor and its location.
Relays and RS-485 are optional. Confirm the protocol, relay count and interlock requirements when ordering.
Safety barriers and surge arresters are optional system components. A barrier alone does not establish intrinsic safety; verify the complete loop and area requirements.

Verify specifications and options against the documents for your model. Select a technical sheet to enlarge it.
