Metal-Tube Variable-Area Flow Transmitters

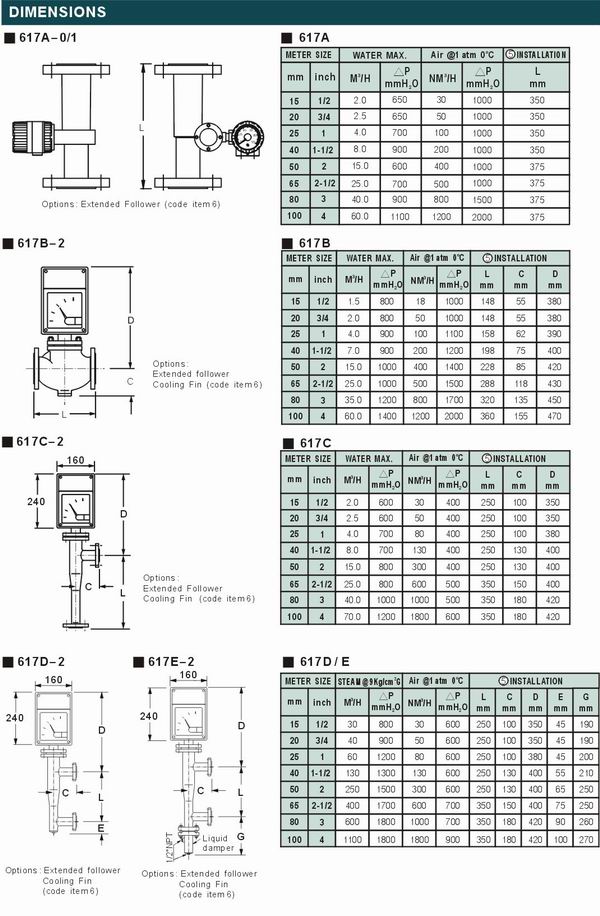

The 617 metal-tube variable-area flow transmitter measures liquids, gases or steam and provides a two-wire 4–20 mA output, with optional mechanical indication. Range and installation dimensions depend on the fluid and flow-direction configuration.

Open PDF ↗Technical support ↗

Model: 617 Series
Category: Flow

SPECIFICATIONS

Technical specifications

Parameter	Specification	Unit

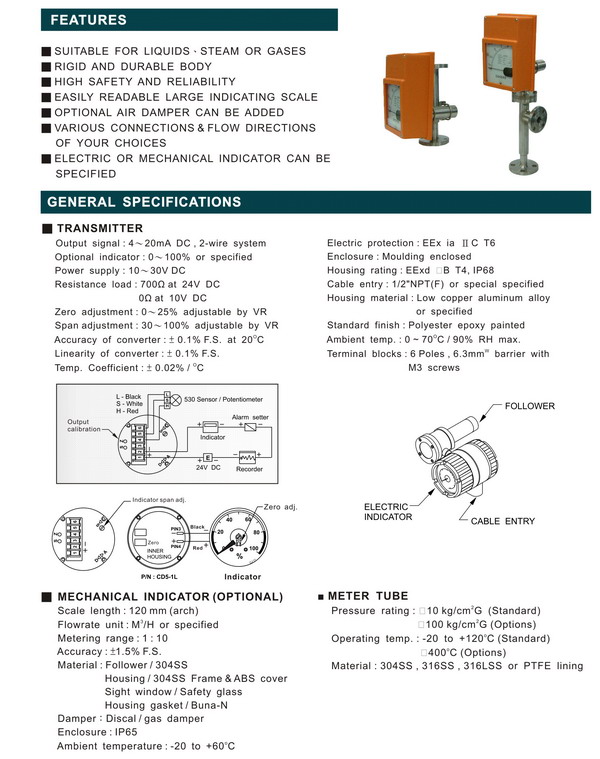

Transmitter output	4–20 mA DC, two-wire
Power supply	10–30	V DC
Load capability	700 Ω at 24 V DC; 0 Ω at 10 V DC
Mechanical indication turndown	10:1 for the optional mechanical indicator
Mechanical indication accuracy	±1.5% of full scale for the optional mechanical indicator
Standard operating temperature	−20 to +120	°C

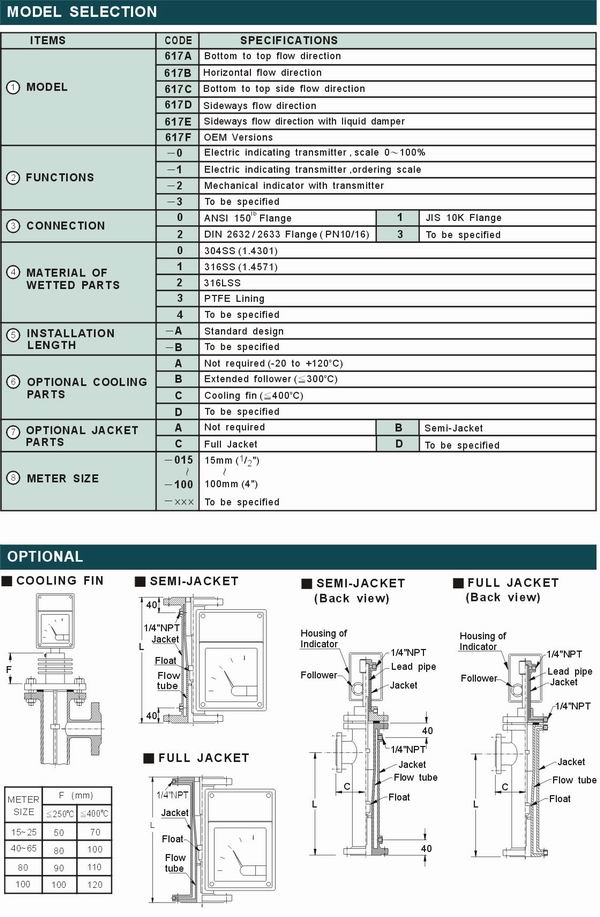

Meter-tube material options	304, 316 or 316L stainless steel, or PTFE lining

Application and selection notes

Converter accuracy is not the accuracy of the complete flow meter.

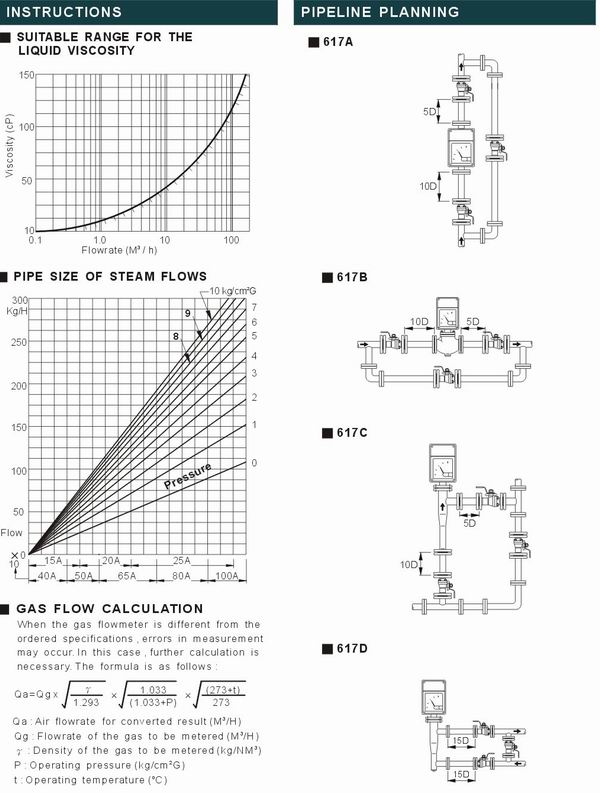

Check flow direction, installation configuration, pressure loss and fluid density; scale conditions vary with the configuration.
Provide the power supply and receiving-device impedance so we can check the two-wire loop.

Verify specifications and options against the documents for your model. Select a technical sheet to enlarge it.
